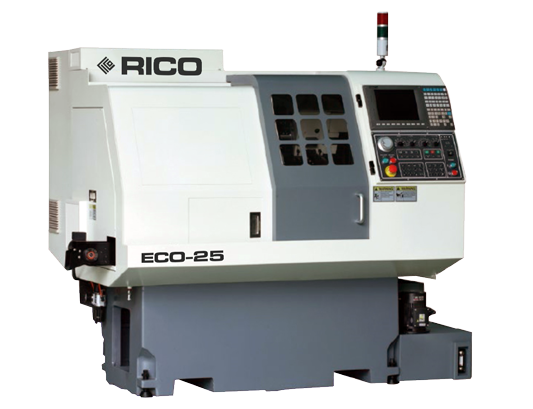

Technical Data RICO ECO

MODEL ECO-25 ECO-30
Swing over cross bed(mm) 300 300
Standard turning dia.(mm) 140 140
Max turning length(mm) 150 150
Max turning dia.(mm) 250 250
X-axis travel(mm) 350 350
Z-axis travel(mm) 250 250
X rapid travel speed(m/min) 20 20
Z rapid travel speed(m/min) 16 16
Spindle rotation speed(rpm) 50-6000 50-6000
Bore of spindle(mm) 28Ø 33Ø
Max. bar feeding DIA.(mm) 25Ø 30Ø
O.D. turning tool size 20 20
I.D. turning tool size 20Ø 20Ø
Coolant tank volume(L) 120 120
Coolant pump for spindle(HP) 1/4 1/4
collet chuck 161E 163E
Spindle motor(KW) 3.75 (5.5 opt) 3.75 (5.5 opt)
X/Z-axis servo motor(KW) 1 1
Hydraulic turret(POS.) 8 8
Machine net weight(Kgs) 2100 2100
Machine size L×W×H 2450×1550×1950 2450×1550×1950
ECO series options

MODEL ECO-25 ECO-30
Direct drive spindle & direct connection collet chuck standard standard
A2-4 spindle option option
161E collet standard -
163E collet - standard
Lighting device 24V/50W standard standard
Tools and tool box standard standard
Coolant system and chip basket tank standard standard
Coolant Pump 1/4HP standard standard
Powerful coolant pump 1HP option option
Base leveling block standard standard
Tool holder for inner hole (ID Ø20) standard standard
Tool base for inner hole (ID Ø20) option option
No-material alarm indicating lamp standard standard
Tool holder bush (IDØ6,8,10,12,16 / ODØ20) standard standard
Gang type tool plate standard standard
Auto lubrication system standard standard
Upper tool holder 20/Lower tool holder 20/Twin tool holder 20 standard standard
Voltage stabilizer option option
Transformer option option
Constant voltage transformer (Voltage stabilizer+Transformer) option option
Finished-parts collecting device option option
Track type electrical chip conveyer option option
Oil mist recycle device option option
Closed air cooler option option
8-Position hydraulic turret option option
Bar-puller (Autolink) option option
CE specifications option option
Finished-parts collecting device option option
Finished-parts collecting device and conveyor belt option option
Y-axis side milling device(4-tool)ER-16 option option
Three shaft drilling & tapping device(B-axis) option option
C-axis function with disk brake system option option
Single shaft side milling device-Top(ER-25) option option
Single shaft Vertical type milling device(ER-20) option option
Single shaft side milling device-Below(ER-20) option option
Syntec 900T controller option option
Syntec 900T All in one controller standard standard
